Tray Widget · Wirechat

The Tray is a compact floating entry point for Wirechat that keeps conversations close at hand across your application.

It is designed for layouts where users should be able to open chat quickly without leaving the page they are already working on.

Placing It In A Layout

join-requests

The Tray is intended for shared authenticated layouts so it stays available across the parts of your application where chat matters.

<html>
    <head>
        @wirechatStyles
    </head>
    <body>
        ...

        @wirechatAssets()
        @auth
            <livewire:wirechat.tray panel="chats" />
        @endauth
    </body>
</html>

This is a good place to render it when chat should stay available throughout the authenticated part of your application.

By default, the widget renders as a fixed floating tray in the bottom-right corner.

Keeping It Mounted

If you want the Tray to stay mounted across persisted page transitions, you may wrap it in @persist('wirechat-tray'):

@persist('wirechat-tray')
    @auth
        <livewire:wirechat.tray panel="chats" />
    @endauth
@endpersist

This is optional, but it can be a good fit when you want the Tray to feel more continuous across the app.

How It Works

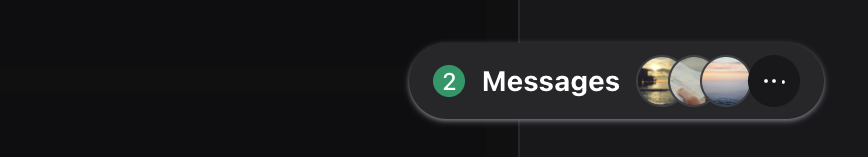

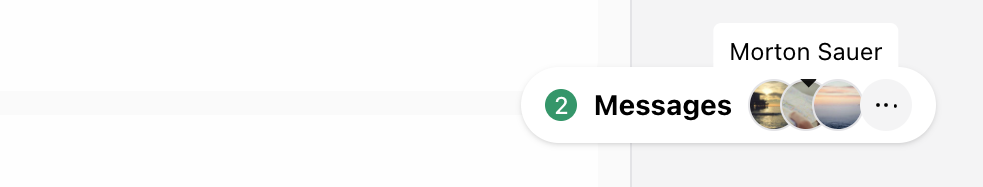

When the Tray is closed, it shows a compact summary bar with:

a Messages label
an unread badge when unread conversations exist
recent conversation avatars

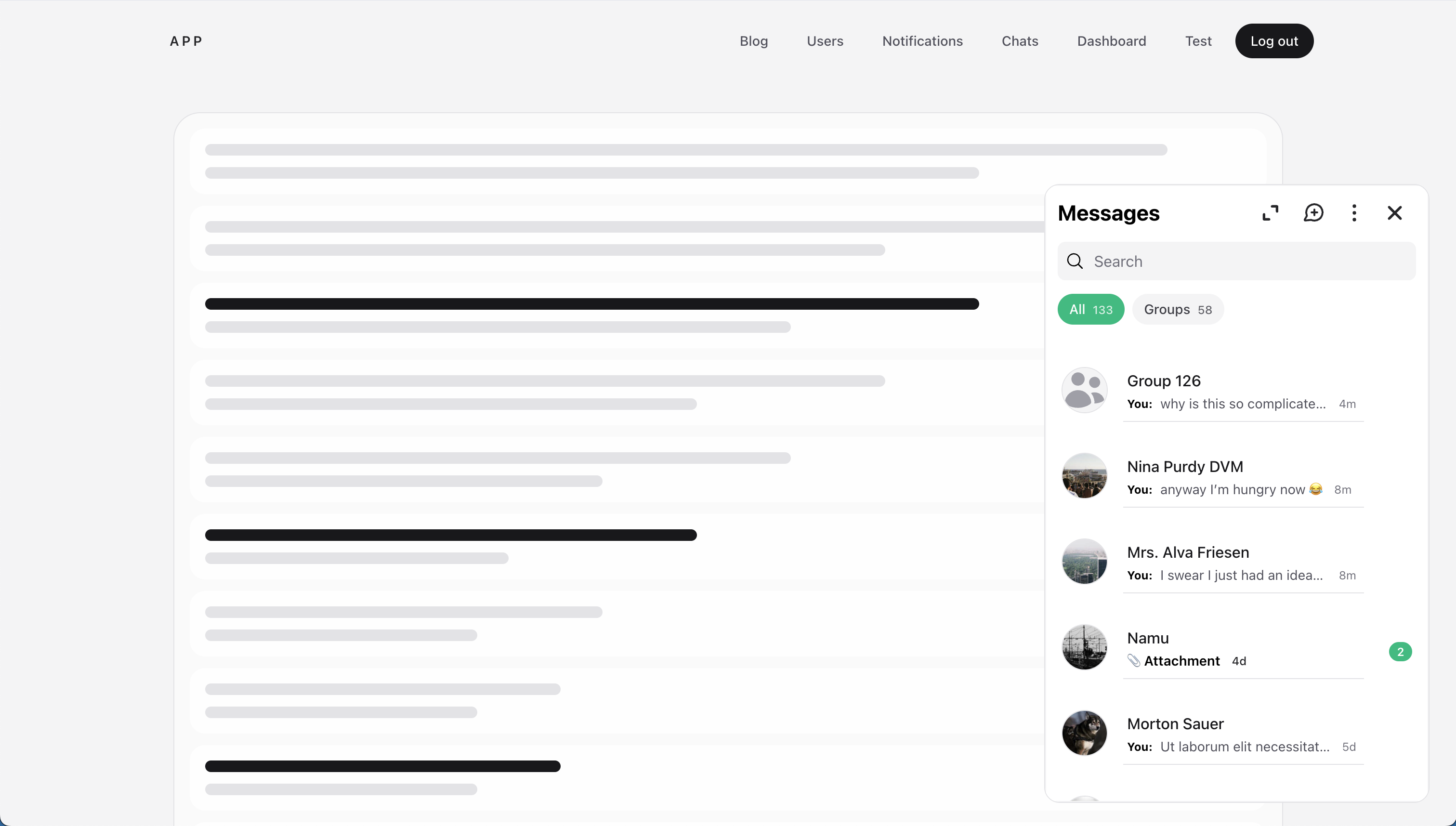

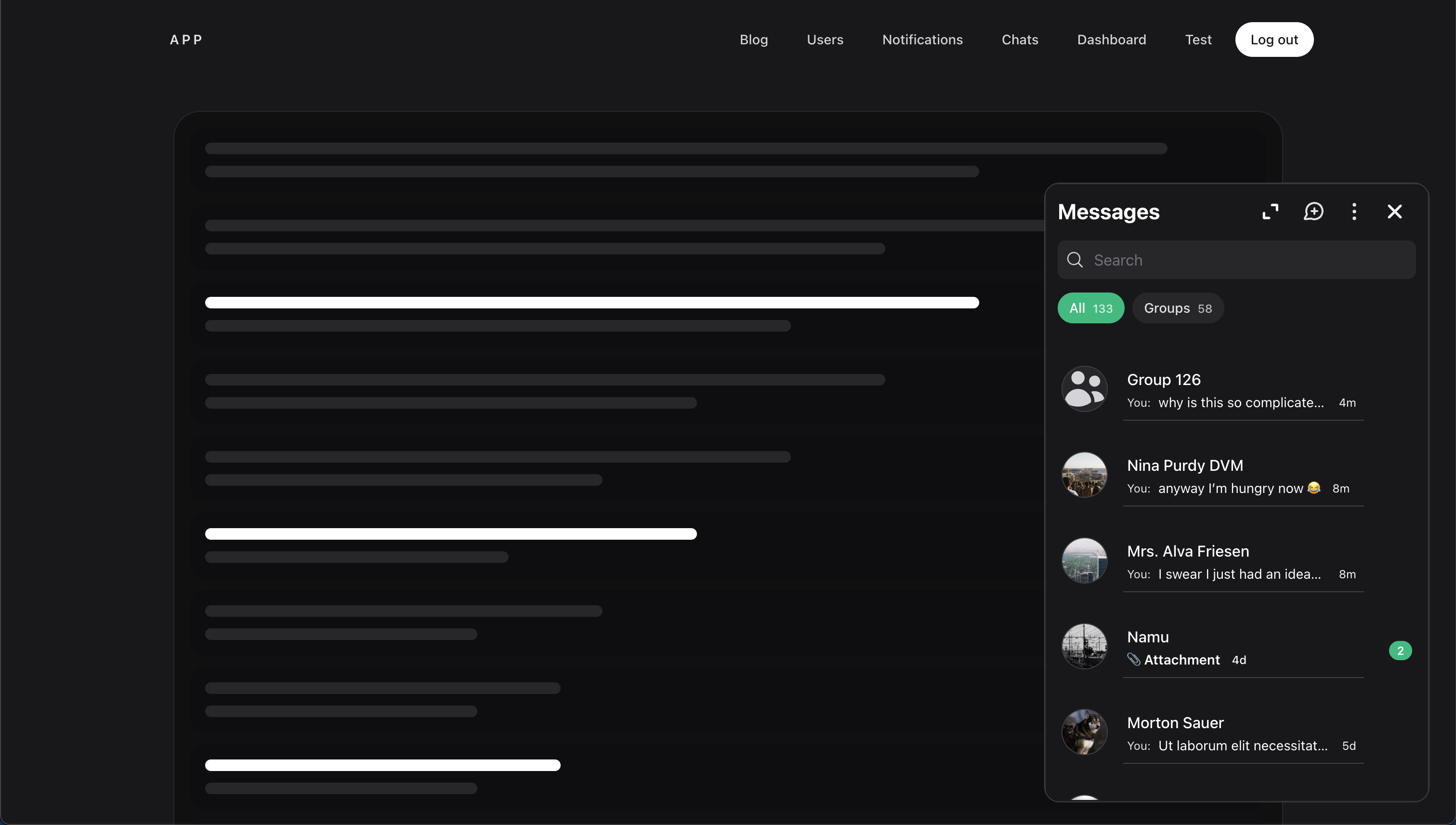

When the Tray is opened, Wirechat loads the full floating chat interface inside the tray.

Using A Panel

If your application has a default panel, the Tray can be rendered without passing anything else.

If you need to target a specific panel, you may pass either a panel ID or a panel instance.

Panel ID

<livewire:wirechat.tray panel="chats" />

This is useful when the current layout already knows which Wirechat panel it should use.

Recent Conversation Limit

Use limit to control how many recent conversations the widget loads for its summary:

<livewire:wirechat.tray panel="chats" :limit="8" />

Wirechat uses that collection to calculate the unread summary and recent conversation preview shown by the tray.

Customizing The Tray

Use class to add custom classes to the opened tray panel:

<livewire:wirechat.tray class="bottom-3 right-3 w-[28rem]" />

Use launcherClass to customize the closed tray launcher:

join-requests

<livewire:wirechat.tray launcherClass="rounded-full px-4 py-2 shadow-lg" />

Use heading to change the label shown in the launcher and the tray chats header:

<livewire:wirechat.tray heading="Inbox" />

You may combine them when you need to adjust both the tray panel and the launcher:

<livewire:wirechat.tray
    class="bottom-3 right-3 w-[28rem]"
    launcherClass="rounded-full px-4 py-2 shadow-lg"
    heading="Inbox"
/>

Panel Relationship

The Tray uses a Wirechat panel to resolve the chat experience it should open.

That means it follows the same panel configuration for routes, middleware, actions, tabs, attachments, and other panel-level features. If you need help configuring the panel itself, see the Panels page.

Notes

The Tray is intended for authenticated users. The widget requires an authenticated user before it can load.
Render the Tray once in a shared layout rather than mounting multiple instances on the same page.
The floating chat interface is loaded when the tray opens, which keeps the closed state lightweight.
In tray mode, Wirechat includes tray-specific controls such as closing the tray and opening the full chats page.
If you want a full embedded chat surface instead of a floating entry point, see the Embedding guide.
